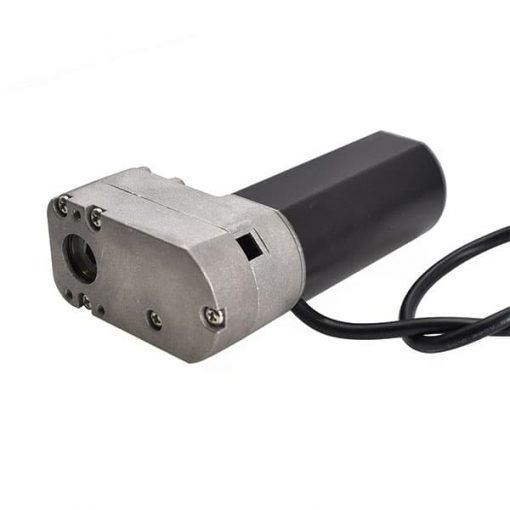

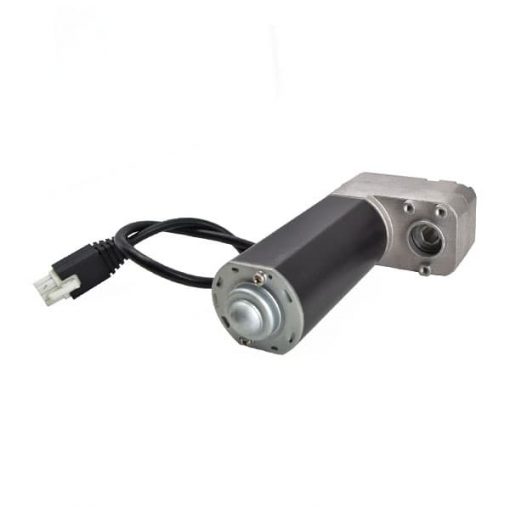

Standing Desk Motor 96C8
The electric standing desk motor 96C8, a powerful solution for effortless height adjustment in your workspace. Powered by a reliable DC 24V system, this motor is specifically designed to handle a lifting weight of up to 50 kg with ease. Experience seamless transitions between sitting and standing positions, promoting a healthier and more productive work environment. The Electric standing desk motor 96C8 offers customizable settings and smooth operation, allowing you to find the perfect ergonomic position for your needs. Upgrade your desk with this reliable and efficient motor and enjoy the benefits of a versatile and comfortable workstation.

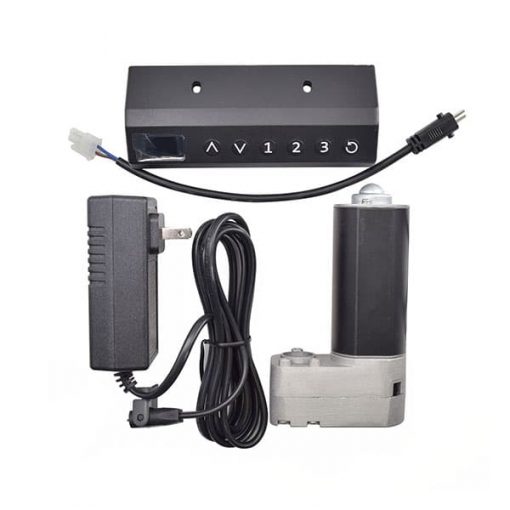

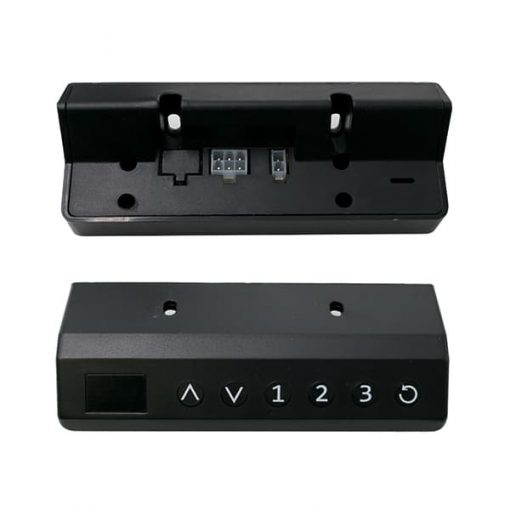

Load 50kg Standing Desk Control Kit
❖ Power Supply Input:AC100V-240V, 50/60Hz
❖ Power Supply Output: 29V 2A
❖ Motor Rated Voltage(V): DC24V
❖ No-load Speed(rpm): 112
❖ No-load Current(A): 1
❖ Rated Torque(N.m): 3.2
❖ Rated Speed(rpm): 83
❖ Rated Current(A): 2.6
❖ Rated Power(W): 30.3
❖ efficiency(%) : 54.2
❖ Stall Torque(N.m): 13.3
❖ Stall Current(A): 9
❖ Shaft Size: 8mm
Applications
❖ Electric standing desk
