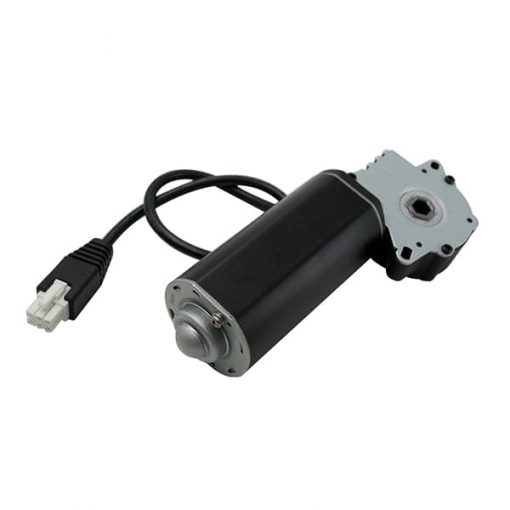

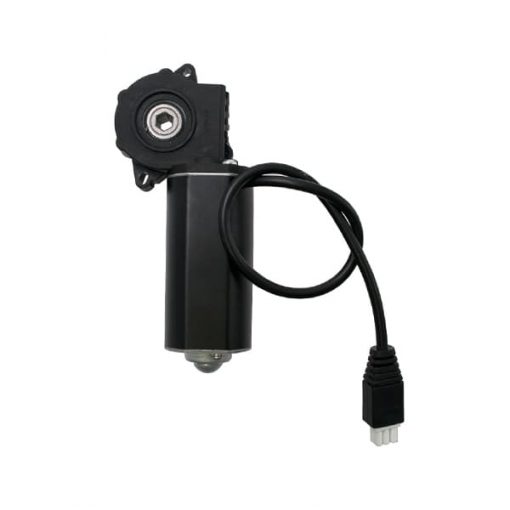

Standing Desk Motor 96A8
The electric desk motor 96A8, a high cost performance solution for effortless height adjustment in your workspace. Powered by a reliable DC 24V system, this motor is specifically designed to handle a lifting weight of up to 40 kg with ease. Experience seamless transitions between sitting and standing positions, enhancing productivity and comfort throughout your workday. Upgrade your desk with the adjustable desk motor 96A8 and enjoy the benefits of a customizable and ergonomic workstation.

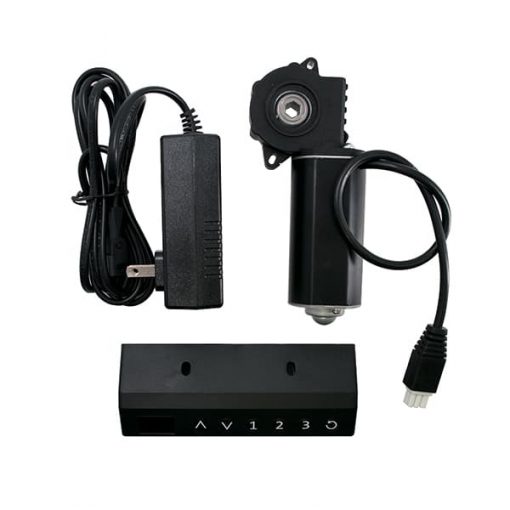

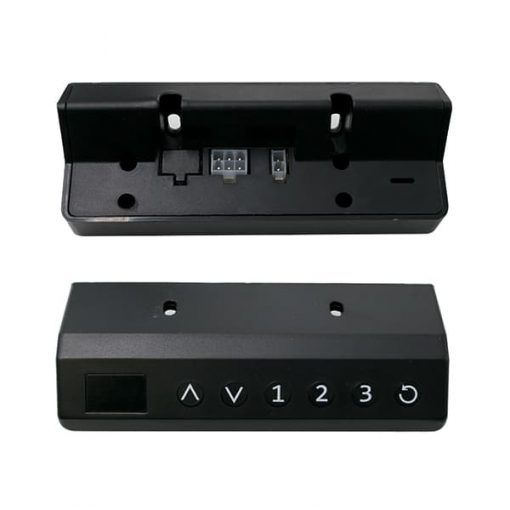

Load 40kg Standing Desk Control Kit
❖ Power Supply Input:AC100V-240V, 50/60Hz
❖ Power Supply Output: 29V 2A
❖ Motor Rated Voltage(V): DC24V
❖ No-load Speed(rpm): 94
❖ No-load Current(A): 1
❖ Rated Torque(N.m): 3.8
❖ Rated Speed(rpm): 76
❖ Rated Current(A): 2.6
❖ Rated Power(W): 30.3
❖ efficiency(%) : 54.2
❖ Stall Torque(N.m): 18.3
❖ Stall Current(A): 9
❖ Shaft Size: 6mm/8mm/13mm
Applications
❖ Electric standing desk
