Standing Desk Motor 137F

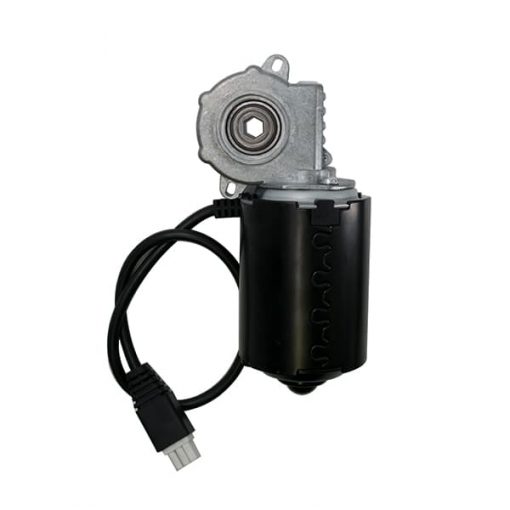

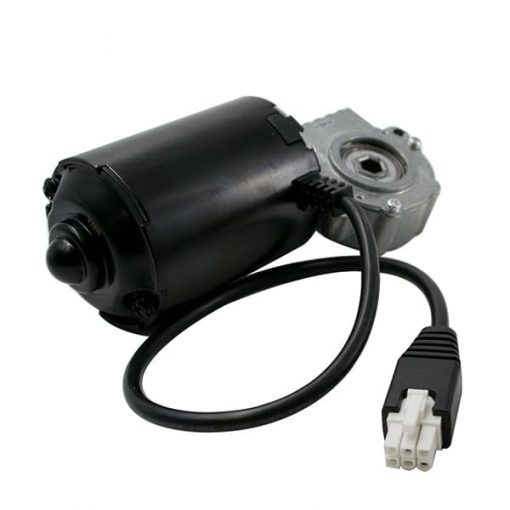

The adjustable desk motor 137F is a 24V DC gearbox motor that offers a self-locking force of more than 60 kg, ensuring stability and safety for your height-adjustable desks. It features low noise, low energy consumption, and a speed of 75rpm. It can be matched with various controllers and buttons to form a unified lifting table drive system. Contact us today to find out how our adjustable desk motor 137F can improve your work comfort and productivity.

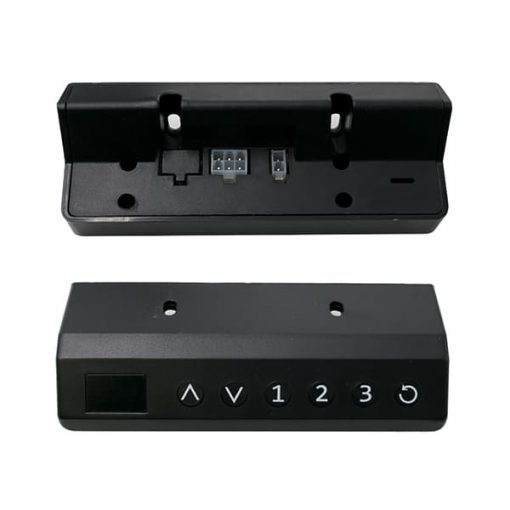

Load 60kg Standing Desk Control Kit
❖ Power Supply Input:AC100V-240V, 50/60Hz
❖ Power Supply Output: 29V 2A
❖ Motor Rated Voltage(V): DC24V
❖ No-load Speed(rpm): 95
❖ No-load Current(A): 1.0
❖ Rated Torque(N.m): 6.68
❖ Rated Speed(rpm): 75
❖ Rated Current(A): 3.84
❖ Rated Power(W): 52.6
❖ efficiency(%) : 57.1
❖ Stall Torque(N.m): 32.33
❖ Stall Current(A): 14.7
❖ Shaft Size: 6mm/8mm/13mm
Applications
❖ Electric standing desk
