Linear Solenoid Actuator M340
The linear solenoid actuator is the ideal solution for applications that require linear motion in a small space. it is easy to install, operate, and maintain, and can deliver forces up to 0.31N.m. Whether you need to control valves, locks, switches, or other devices, our small linear solenoids can meet your needs.

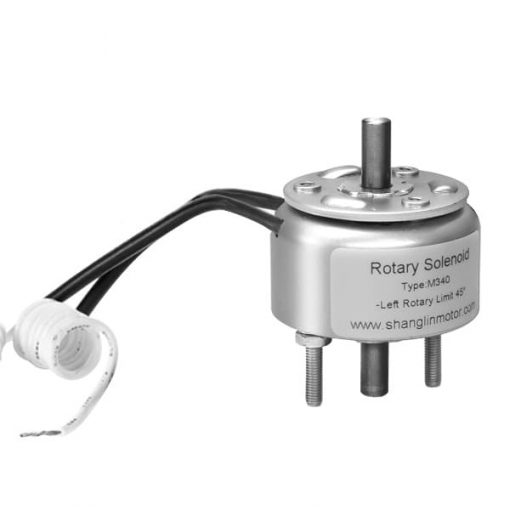

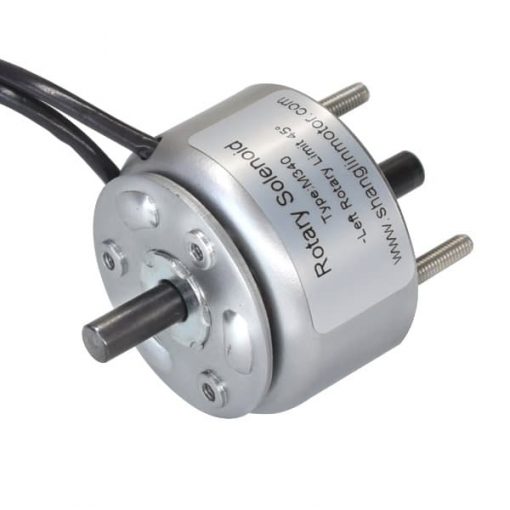

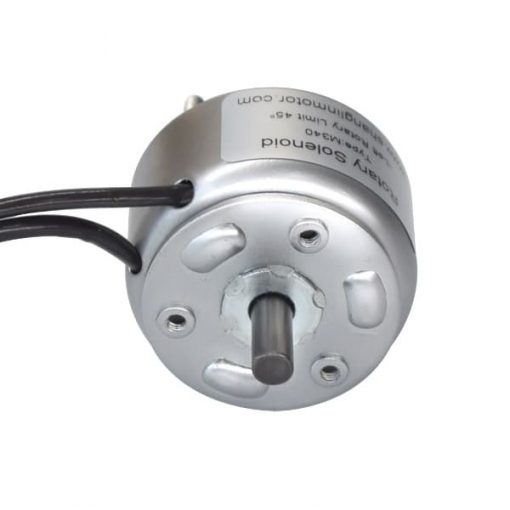

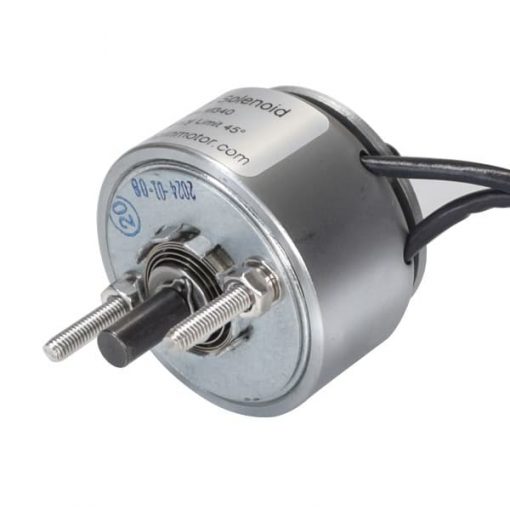

The M340 Rotary Solenoid from Shanglinmotor boasts a self-returning mechanism, utilizing high-performance bearings and spring for flawless mechanical reset and lightning-fast response. With its compact 34mm diameter and low energy consumption, it seamlessly integrates into various applications. With an impressive lifespan of up to 10 million cycles, the M340 Rotary Solenoid has been widely acclaimed for its exceptional performance and versatility.
Applications
❖ Textile machines
❖ Sorting machines
❖ Smart trash bin lift
❖ Color expansion machines
Specifications
Duty Circle | 100% continues | 75% or less | 50% or less | 25% or less | 10% or less | |
Max Time (s) | ∞ | 100 | 90 | 30 | 6 | |
Watts (20℃) | 9 | 12 | 18 | 36 | 90 | |
Ampere-turns (20℃) | 530 | 610 | 750 | 1050 | 1670 | |
Gross Starting Torque (N.m 20℃) Return Spring Torque (0.013~0.020N.m) | 25℃ | 0.04 | 0.052 | 0.081 | 0.15 | 0.31 |
35℃ | 0.029 | 0.04 | 0.063 | 0.115 | 0.23 | |
45℃ | 0.017 | 0.022 | 0.04 | 0.092 | 0.16 | |
70℃ | 0.012 | 0.017 | 0.022 | 0.046 | 0.075 | |
Resistance ± 10% (20℃) | Voltage DC (V) | |||||
2.3 | 4.5 | 5.2 | 6.4 | 9 | 14 | |
4 | 6 | 6.9 | 8.5 | 12 | 19 | |
6.3 | 7.5 | 8.6 | 11 | 15 | 24 | |
9 | 9 | 10 | 13 | 18 | 28 | |
16 | 12 | 14 | 17 | 24 | 38 | |
25 | 15 | 17 | 21 | 30 | 47 | |
36 | 18 | 21 | 25 | 36 | 57 | |
49 | 21 | 24 | 30 | 42 | 66 | |
64 | 24 | 27 | 34 | 48 | 76 | |
100 | 30 | 35 | 42 | 60 | 95 | |
144 | 36 | 42 | 51 | 72 | 114 | |
196 | 42 | 48 | 59 | 84 | 133 | |
256 | 48 | 55 | 68 | 96 | 152 | |
324 | 54 | 62 | 76 | 108 | 171 | |
400 | 60 | 69 | 85 | 120 | 190 | |
Note: There is 1mm axial displacement during operation, and 25° limit and 45° limit are common options. | ||||||
