Dual Motor Synchronous Controller FD-SYNC-2

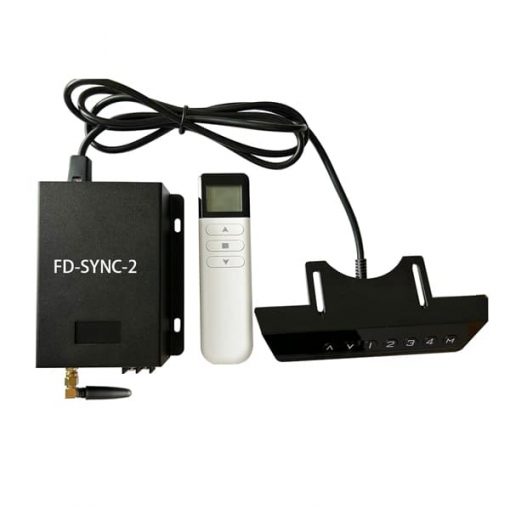

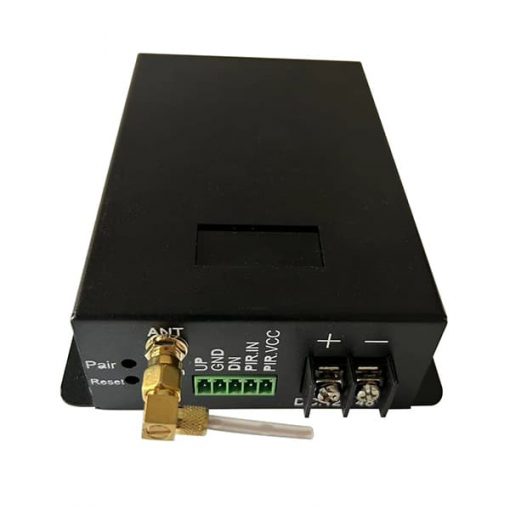

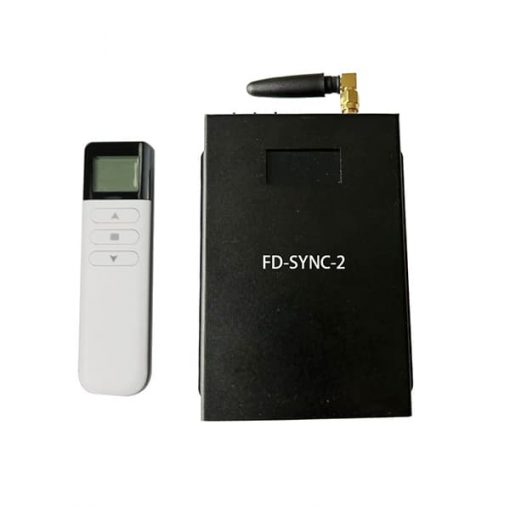

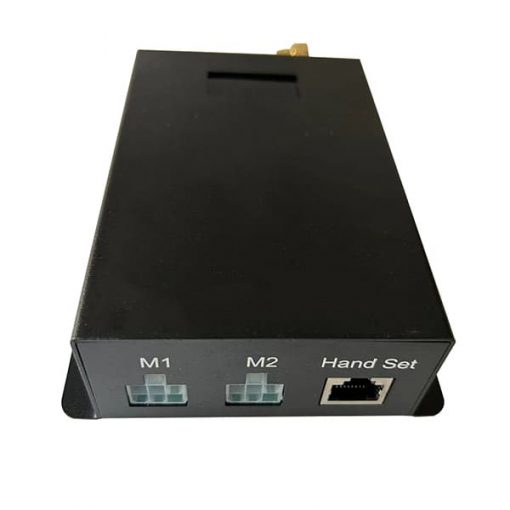

The FD-SYNC-2 Dual Motor Synchronous Controller  offers flexible control options, including wired touch handle operation and wireless remote control, with the ability to enhance range through an external antenna. Real-time monitoring via an LED display provides crucial updates on stroke positions and system alerts, while intuitive touch controls allow for easy navigation and operation. The FD-SYNC-2 is equipped with motor soft start and stop functions, reducing the impact of high current during startup and extending actuator lifespan. It also features an actuator protection mechanism that automatically slows down movement near end positions and retains a small travel buffer to prevent overextension. Additionally, the hand controller includes a memory function for saving and quickly recalling specific actuator positions, streamlining repetitive tasks and enhancing operational efficiency. Overall, the FD-SYNC-2 offers a robust, user-friendly solution for achieving precise, reliable synchronous control in various automated systems.

The FD-SYNC-2 Dual Motor Synchronous Controller is a high-power, dual-channel solution engineered for precise control of electric linear actuators. Designed for seamless synchronization, it ensures two actuators operate in perfect harmony, making it ideal for applications requiring accurate and coordinated movement. .

Applications

❖ RV roof lift
❖ Industrial applications
❖ Robotics
❖ Electric lift table
❖ Medical Devices

❖ Product Model: FD-SYNC-2
❖ Dimensions: 126*103*38mm
❖ Power supply: DC:12~48V
❖ Maximum number of linear actuators: 2 Units
❖ Single channel output current: 15A
❖ Working environment: -20℃ ~ 80℃
❖ Working frequency: 10%
