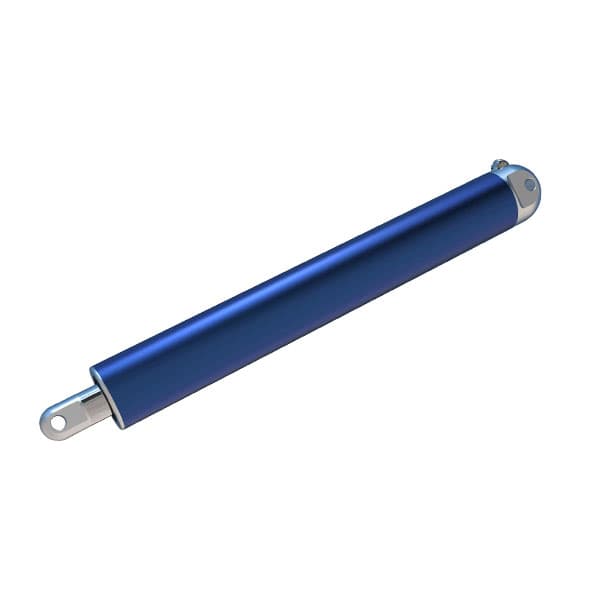

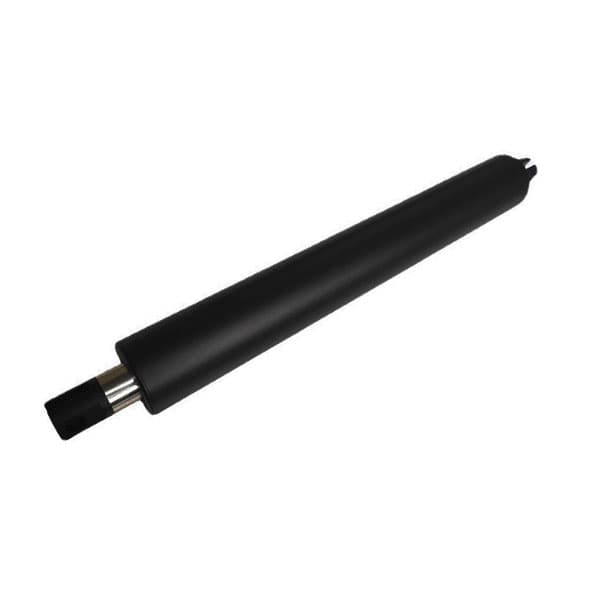

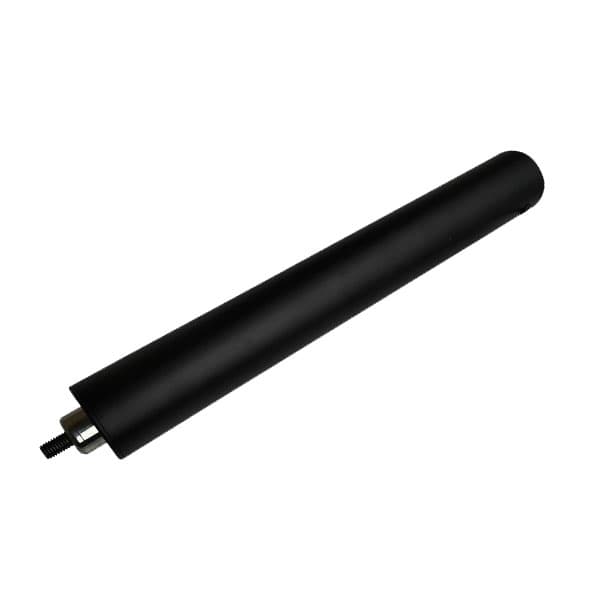

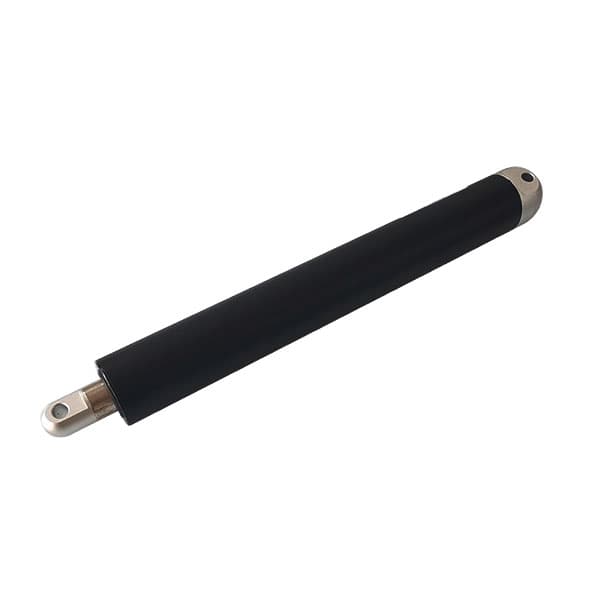

Engineered for excellence, this SL-LA-50 linear motor powerhouse is the cornerstone of innovation across multiple industries. From enhancing electric medical beds to optimizing solar panel tracking systems, industrial automation equipment, lifting tables, and more, its versatility knows no bounds. Featuring a robust SS304 stainless steel inner tube, it’s not just strong and durable but also IP66 waterproof, ensuring resilience against the elements. The high-precision planetary motor inside is not only wear-resistant but also corrosion-resistant, guaranteeing enduring performance in any environment. With a built-in automatic lock function and the capability to handle a maximum load of 5000N, the SL-LA-50 Linear Motor Actuator redefines reliability and precision in motion control. Elevate your projects with confidence, knowing you have a trusted partner in performance and durability.
We proudly present our exceptional this 5000N linear actuator, a true powerhouse that combines impressive power and waterproof IP67 protection. Designed to excel in a wide range of applications, including agriculture and industrial, this versatile device is the best choice. With its built-in limit for safe operation and a robust stainless steel tube capable of handling heavy loads, our 5000N linear actuator guarantees unmatched performance and durability.
❖ RV box and roof lifting
❖ Solar panel
❖ Smart trash bin lift
❖ Solar panel tracking
❖ Electric medical bed
❖ Yacht and boat
Model | SL-LA-50-A | SL-LA-50-B | SL-LA-50-C |
Diameter | 50mm | 50mm | 50mm |
Rated Force | 1500N | 3000N | 5000N |
Speed No-load | 7.69mm/s | 4.2mm/s | 2.4mm/s |
Input Voltage | 12V/24V | 12/24v | 12/24v |
No-load Current | 1.0/0.6A | 1.0/0.6A | 1.0/0.6A |
Rated Current | 3.0/2.0A | 3.5/2.5A | 3.5/2.5A |
Stroke | 30-1000mm | 30-1000mm | 30-1000mm |
Feedback | Option | Option | Option |
Duty Cycle | 10% | 10% | 10% |
IP Rating | IP66 | IP66 | IP66 |
Operational Temperature | -20°C/65°C | -20°C/65°C | -20°C/65°C |
Operating Noise | 51dB | 51dB | 51dB |
Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable | Built-in, non-adjustable |
Housing Material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Stroke Rod Material | Stainless steel | Stainless steel | Stainless steel |
Cable | 36cm | 36cm | 36cm |
Certifications | CE, ROHS | CE, ROHS | CE, ROHS |
