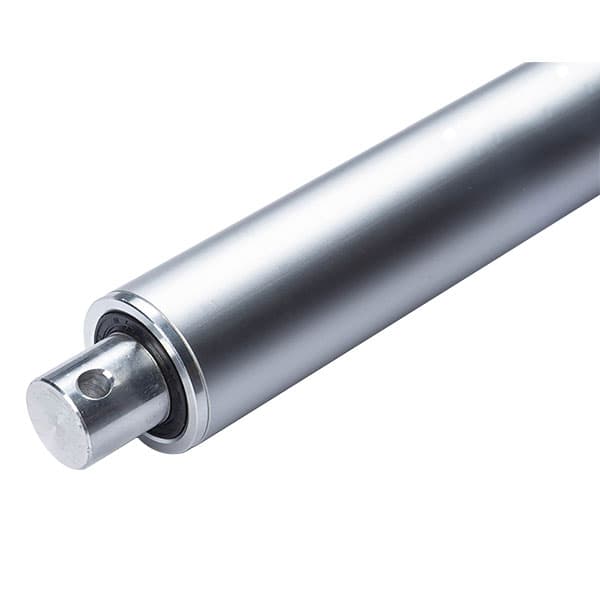

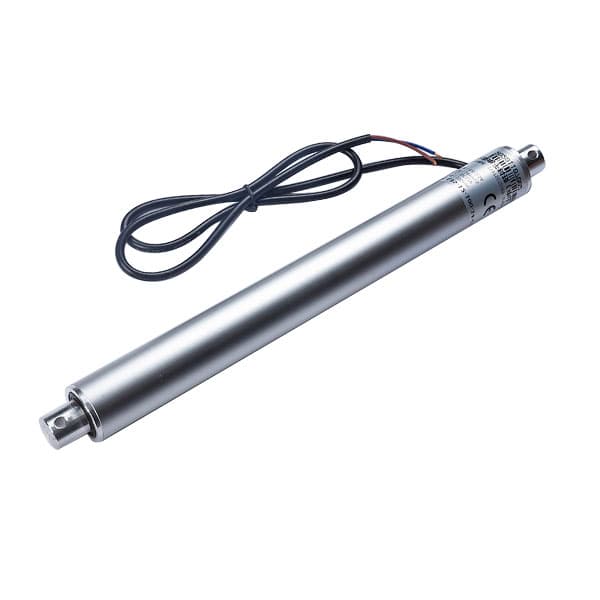

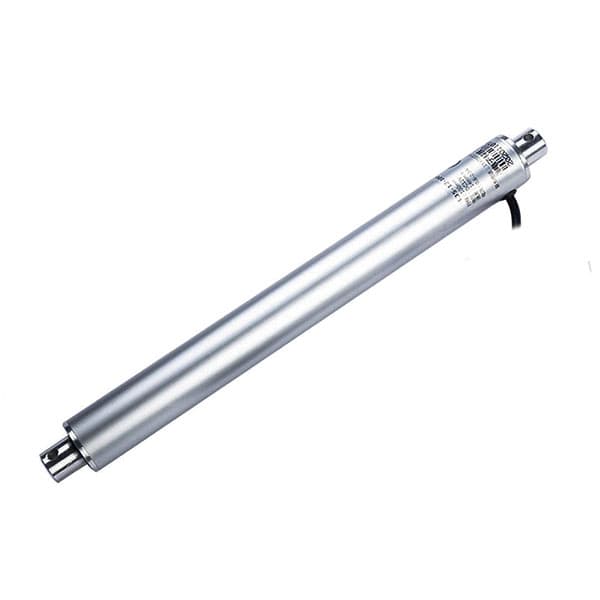

Designed to elevate the functionality and comfort of medical beds, electric sofas, standing tables, and more, this actuator SL-LA-35 is the epitome of reliability and innovation, which is your versatile solution for indoor automation needs. Featuring a sleek 35mm diameter, an aluminum alloy shell, and a robust stainless steel inner tube, it seamlessly blends durability with modern aesthetics. With a maximum thrust of 2500N, it effortlessly handles various applications while ensuring smooth and precise movements. Plus, with its built-in limit switch, you can trust in its safety and accuracy every time. Transform your indoor spaces with the SL-LA-35 Linear Actuator, where quality and performance meet for unparalleled convenience and comfort.
LS-LA-35 linear actuator, a compact yet powerful solution designed for indoor applications. With its sleek aluminum alloy shell and robust stainless steel inner tube, this actuator exudes strength and durability. Offering a range of stroke options from 30mm to 1000mm, it provides versatile functionality to suit various needs. Equipped with a built-in overcurrent protection device, it delivers strong thrust and reliable self-locking force.
❖ Electric nursing bed
❖ Electric sofa
❖ Electric exhibition stand
❖ Electric lift bed
❖ Electric massage chair
❖ Electric recliner
Model | SL-LA-35-A | SL-LA-35-B | SL-LA-35-C | SL-LA-35-D |
Diameter | 35mm | 35mm | 35mm | 35mm |
Rated Force | 1200N | 2500N | 1500N | 600N |
Speed No-load | 4mm/s | 7mm/s | 15mm/s | 28mm/s |
Input Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
No-load Current | 0.6A/0.4A | 0.6A/0.4A | 0.6A/0.4A | 0.6A/0.4A |
Rated Current | 3A/3A | 3A/3A | 3A/3A | 3A/3A |
Stroke | 50-1000mm | 50-1000mm | 50-1000mm | 50-1000mm |
Hall Sensor | No | No | No | No |
Duty Cycle | 20% | 20% | 20% | 20% |
IP Rating | IP56 | IP56 | IP56 | IP56 |
Operational Temperature | -20°C/70°C | -20°C/70°C | -20°C/70°C | -20°C/70°C |
Operating Noise | <55dB | <55dB | <55dB | <55dB |
Limit Switch | Built-in, non-adjustable | Built-in, non-adjustable | Built-in, non-adjustable | Built-in, non-adjustable |
Housing Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Stroke Rod Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Cable | 35cm | 35cm | 35cm | 35cm |
Certifications | CE, ROHS | CE, ROHS | CE, ROHS | CE, ROHS |
