Electric Window Opener FE-CM
Motorized Chain Window Opener
❖ 24VDC and 230VAC versions optional
❖ Push/Pull force 400N
❖ Aluminum shell

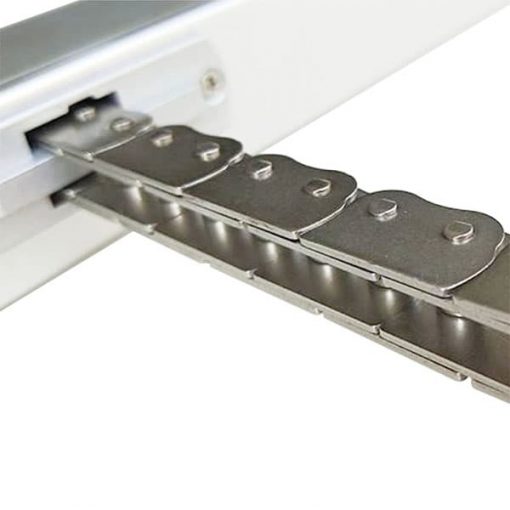

❖ Stainless steel chain
❖ Sandblasted oxidative surface treatment
❖ Electronic over current protection with relax function

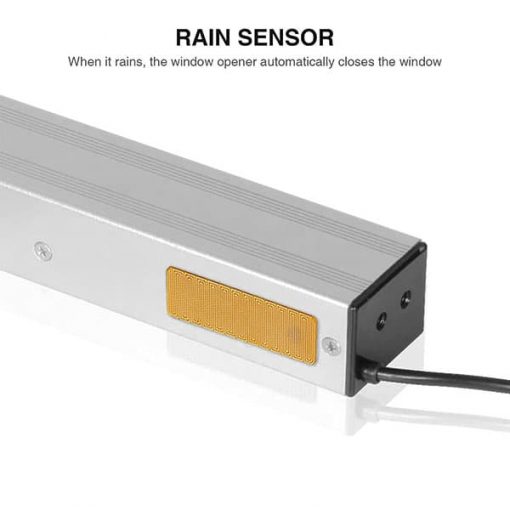

❖ Optional external rain sensor and built-in rain sensor
❖ CE approved, 3 years guarantee
Applications
❖ Automatic awning windows
❖ Casement windows
❖ Skylights
❖ Curtain wall vents
❖ Greenhouse
Specifications
Stroke | Size L*W*H | Speed | Working Voltage | Overload Current | Push/Pull Force | Working Temperature | IP Rating |
100mm | 300*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
200mm | 350*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
300mm | 400*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
400mm | 450*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
500mm | 500*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
600mm | 550*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
700mm | 600*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
800mm | 650*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
900mm | 700*51*41mm | 10mm/s | DC 24V | 1.2A | 400N | -20℃~80℃ | IP42 |
Stroke | Size L*W*H | Speed | Working Voltage | Overload Current | Push/Pull Force | Working Temperature | IP rating |
100mm | 350*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
200mm | 400*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
300mm | 450*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
400mm | 500*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
500mm | 550*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
600mm | 600*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
700mm | 650*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
800mm | 700*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
900mm | 750*51*41mm | 10mm/s | 220VAC | 0.15A | 400N | -20℃~80℃ | IP42 |
